Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Hot Sell Heavy Duty Exhaust Fan For Industry/poultry/greenhouse Frp Poultry Ventilation System, paint booth exhaust fan, 8 inch exhaust fan 50HZ Poultry Ventilation System, exhaust fan for cooler, window mounted exhaust fan

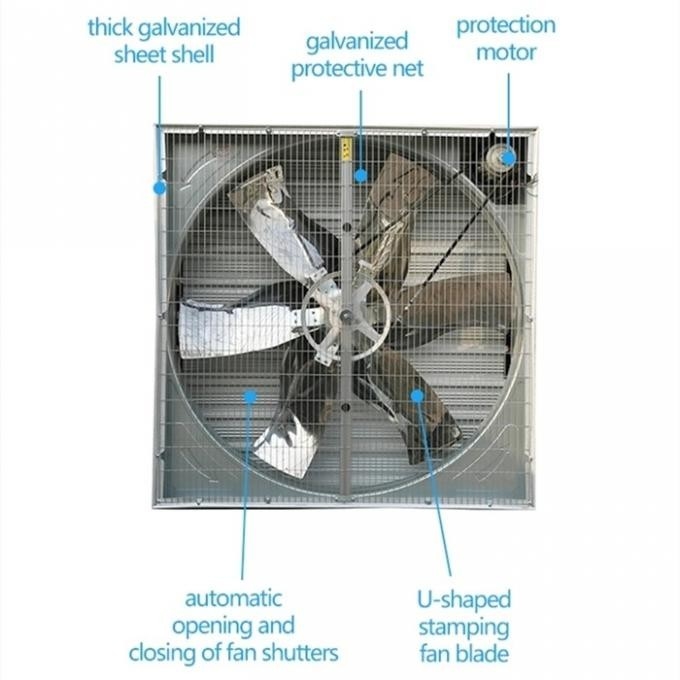

| blade | 430 stainless steel, 1.2mm thickness | Linking parts | Aluminium alloy | |
| Frame | Galvanized sheet | Spring | 304 stainless steel | |
| Shutter | Galvanized sheet | Fastener parts | Stainless steel | |
| Belt | Japanese Mitsubishi brand | Bearing | Imported double-row bearing, waterproof | |
| Motor | Both China famous brand and Siemens Motor are available | Blade support | Hot-dip galvanized | |
| Voltage | Can be changed to different voltage like 220v, Single phase | Delivery time | As usual 5~7 days | |
| Motor protection class | IP55 | Payment term | T/T, | |
| Fan belt pulley | High strength aluminum-magenisum alloy | Motor plate |
Hexagon fixed nuts. Can suitable different size of motor.
|
|
| Fan side | With plastic handle |

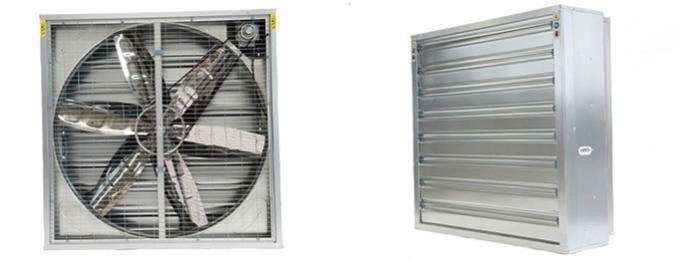

DJF(b)-2 Series Hanging exhaust fan is widely used in the cow house or dairy farm for ventilation and cooling.
| Technical Data: | |||||||
| Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed(rpm) | Air Flow (m³/h) | Input Power (W) | Noise (db) |
| DJF(b)-2-900 | Belt | 750 | 630 | 1400 | 28000 | 370 | <65 |
| DJF(b)-2-1000 | Belt | 900 | 610 | 1400 | 30000 | 750 | <70 |
| DJF(b)-2-1100 | Belt | 1000 | 600 | 1400 | 32500 | 750 | <70 |
| DJF(b)-2-1220 | Belt | 1100 | 460 | 1400 | 38000 | 750 | <70 |
| DJF(b)-2-1380 | Belt | 1270 | 439 | 1400 | 44000 | 1100 | <70 |
| DJF(b)-2-1530 | Belt | 1400 | 325 | 1400 | 55800 | 1500 | <70 |
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , Bagplastic.com utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, Bagplastic.com aluminum alloy for option
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.
Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, Bagplastic.com free maintenance and long service life.
Brand: Mitsuboshi belt (Japanese)
Type: A type
Advantage:
Famous brand, Bagplastic.com Long service life, maintenance free
Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.
1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Bagplastic.com Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly.
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, Bagplastic.com the first put in the phase lack protection device which would power off when shortage of electricity.
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g. Bagplastic.com
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
