Broiler House Grow Room Environment Controller, Multi Channel Temperature Controller

Broiler House Environment Control System

Feature

1. Install different environment controller according to equipment components situation in poultry house.

Our controller includes these series of T607, T610, T616 imported from Isreal Agrologic and UBT-2000 developed and produced by ourselves.

2.Control box made by a national standard box body, and power controls are CHINT and SCHNEIDER.

3.Environment controller is designed to control poultry breeding equipment automaticlly and intelligently

according to local climate and equipment requirements.

4.Power failure alarm and other failure alarm.

5.Humidity sensor&Temperature sensor

6.Volatage meter&Ammeter

7.Multifunctional switch

Environment control closed chicken floor house farm equipment automatic chicken poultry shed equipment

Controller Climate Funtion:

1>Climate controller reliable,user friendly micro controllers especially designed for

broiler house. Bagplastic.com

2>Has built 8 relays for alrm output,heater,5 groups of fan, cooling equipment.

3>LCD screen makes the computer and user communicat easily.User could input

data to program the micro computer.

4>Several relays there.You could add relays to control more equipment.

5>Available to control heating,ventilation,cooling,air inlet.

Controller Climate Details:

Automatic Poultry Keeping system:

1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.
2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.

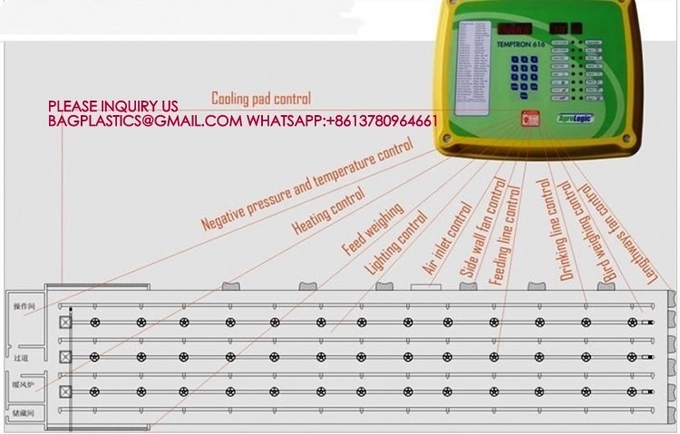

4. Environmental control system: Automatically control the temperature, humidity, light, etc.

5. Heating system: Fuel can be gas or oil. Keep the house warm during winter.

6. Fogging system: Regularly disinfecte the poultry house.

1. Install different environment controller according to equipment components situation in poultry house.Our controller includes three series of T607,T610 and T616 imported from Israel Agrologic and MRS6616 developed and produced by ourselves.

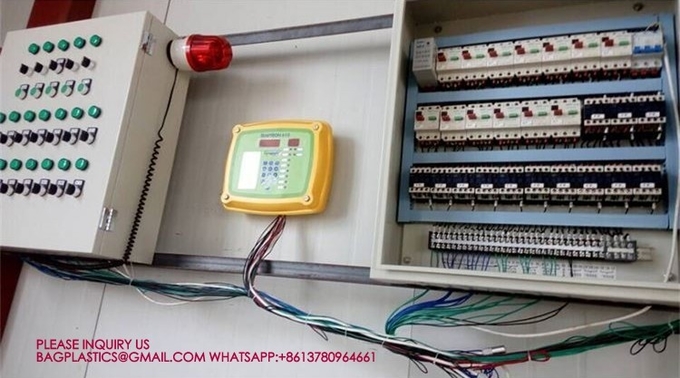

2. Control box made by national standard box body,and power controls are CHNT and SCHNEIDER.

3. Environment controller is designed to control poultry breeding equipment automatically and intelligently according to local climate and equipment requirements.

A variety of environment controllers are customized from Israel, Bagplastic.com it can reach a most advanced control level in poultry house control.

T607:

1.Climate controllers reliable,user friendly micro controllers especially designed for broiler house.

2.Has built 8 in relays for alarm output, heater, Bagplastic.com 5 groups of fan, cooling equipment.

3.LCD screen makes the computer and user communicate easily.User could input data to program the micro computer.

4.Several relays there.You could add relays to control more equipment.

5.Available to control heating, ventilation, cooling, air inlet.

T610:

1.Has 10 relays for alarm output, heating, 5 groups of fan, cooling,air inlet, 1 variable fan.

2.Control equipment via temperature, available to control heating, ventilation,cooling, air inlet.

3.Usually designed for broiler house.

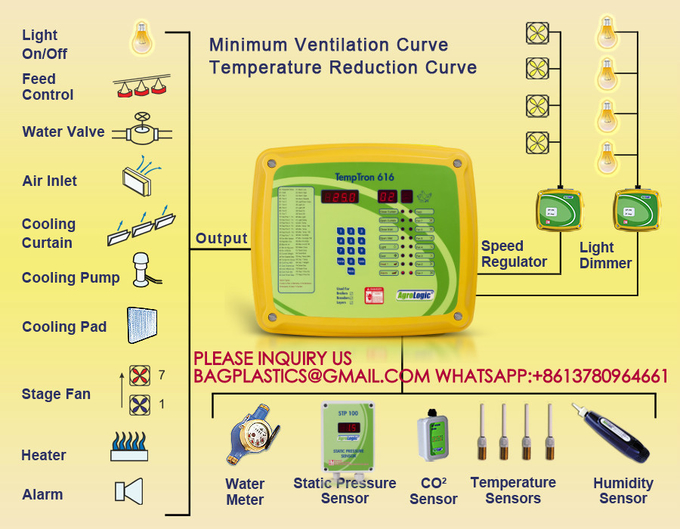

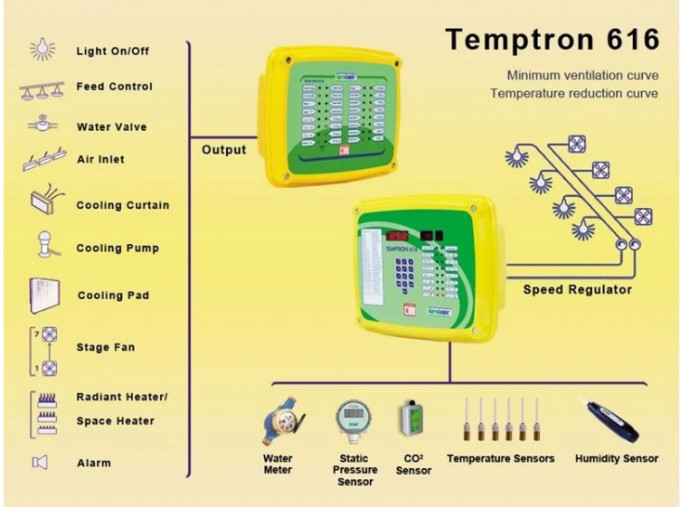

T616:

1.Has 12 relays for alarm output, heating, Bagplastic.com 7 groups of fan, cooling, air inlet, curtain.

2.Control equipment via temperature or pressure, available to control heating, ventilation, cooling, air inlet, curtain.

3.Usually designed for breeder house.
