| MOQ: | 1 |
| Price: | NEGOTIABLE |
| Delivery Period: | 7 DAYS |
| Payment Method: | T/T, Western Union |

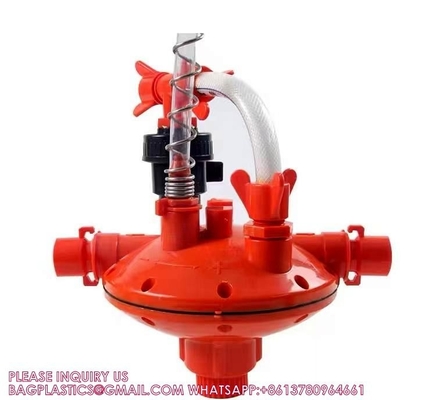

Water regulator is widely used in poultry house water line, Bagplastic.com both for cage and floor raise.It is an extremely important part of your watering system as they allow you to control the amount of pressure in your water line.Whether the pressure is too high or too low, Regulators can regulate and stabilize the pressure making sure the proper amount of water is in the pipe at any given time.
1. it can stabilize the water level and enables enough water supplies.
2.The indicating tube is high in transparence and tenacity, Bagplastic.com it’s easy to observe the water level.
3. Water pressure is displayed by the height of red floating ball in the transparent standing pipe.
Main features:
1.Large flow of automatic water supply
Regulator design with oversized intake flow regulator, Bagplastic.com the regulator is currently used by more than the amount of water increased by 50%
2.Automatic washing
Designed to automatically flush and two-way combination of automatic water valve, Bagplastic.com when rotated to wash stalls, can automatically internal regulator inlet and rinse thoroughly, rinse after rotation to shift to automatic voltage regulator water supply
3.Fast Supply Water
When the waterline need a quick supply, rotary valves can be combined to wash stalls, doubling the amount of water flow rate is increased several times, the water in the water line will quickly reach the end of the waterline, so timely synchronized poultry drinking water
4.Automatic control
Automatic control, reduce labor intensity, Bagplastic.com closed water supply, clean, reliable, easy to install, easy to use
Technical parameter:
| Product Name | Water Pressure Regulator |
| Material | ABS Engineering plastic |
| Color | orange |
| Function | Used for Poultry drinking system |
| Regulating Range | 0-0.6Mpa (0-87PSI) |
| Size | 18*25cm Bagplastic.com |
| Application | poultry water pressure regulator for chicken farms |
| 1 | stable and high sensitivity |
| 2 | Can guarantee the waterline on both ends of water level consistent |
| 3 | Water supply sufficient and uniform |
| 4 | Simple installation, automatic flushing |
| 5 | clear display of Water level, steel wire circle protection outside, which is more durable |
How to use:
1.The work / recoil handle is rotated to adjust the working condition, Bagplastic.com the rotating pressure adjustment handle, you can adjust the water pressure.
2.Water level indicator tube to increase or decrease the water level every 100mm, nipple drinkers will increase or decrease the amount of water 8-10ml / min
3.The work / recoil handle is rotated to adjust the recoil state, Bagplastic.com and open a terminal valve, you can flush the pipeline.
Chicken Water Drinker Application:
This chicken nipple drinker is specially designed to meet the requirement for automatic chicken water line, providing proper water flow and hygienical watering environment.
1.It can be triggered from 360 degree which helps young birds start well and makes drinking easier.
2.All the metal parts are hot galvanized for rust prevention.
3.Provide the right amount of water for their climate and house conditions.
PLEASE INQUIRY US
BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661
|
Basic information
|
9 grilles, diameter of pan bottom-360mm, material-pure engineering plastic
|
|
Feeding ability
|
6-8 male breeders/pc
|
|
Advantages
|
a. With 9 grilles design, intake hole after supplementing male breeders.
b. The fixation clamp can prevent feed pan swinging, keep feed at the center of feed pan. c. The adjusting ring at the top of feed pan can adjust the feed gears to the optumum position to reduce the waste of feed. Bagplastic.com |
2.Description of Automatic Chicken Feeding Pan System
